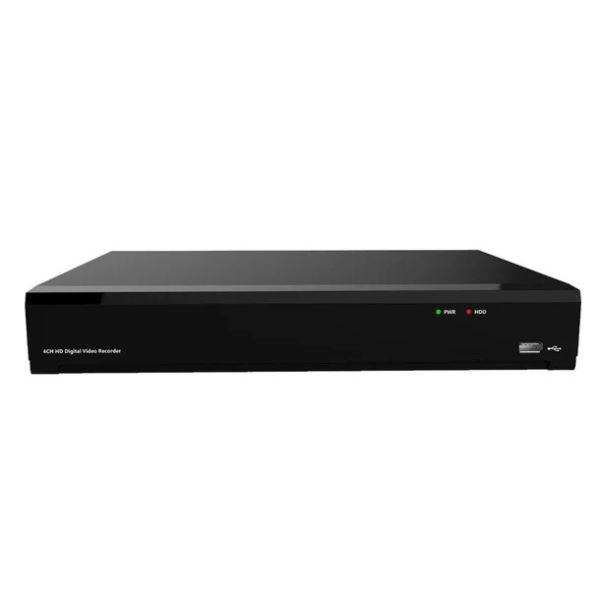

Gamut HD DVR (4 Channel) - L22.7 × W30 × H5.3 cm
Brought over from Gamut is this dapper DVR, which lets you connect up to 8 coax cameras to the recorder. With a bit of extra configuration, you can also add up to 4 IP cameras via your network. This recorder supports Full 1080p HD to ensure that you view and record the most detailed footage.
Delivery Information
Delivery within an estimated 2 - 3 working days
Delivery is free to UK Mainland, excluding Scottish Highlands where a surcharge will apply, please check before ordering.
Details
Brought over from Gamut is this dapper DVR, which lets you connect up to 8 coax cameras to the recorder. With a bit of extra configuration, you can also add up to 4 IP cameras via your network. This recorder supports Full 1080p HD to ensure that you view and record the most detailed footage.
4 Channel supports up to 4 coax cameras & 2 IP cameras. It also comes pre-fitted with a 1TB HDD.
What's Included?
- 1x Gamut 8-Channel 4-in-1
- 1x UK mains power supply
- 1x USB mouse
- 1x English setup instructions
- 1x 1TB
Tech Specs
- Recording bandwidth: 8Mbps~24Mbps
- Total decoding performance: 1080p @ 60fps
- Bandwidth out: 64Mbps
- Video inputs: 8 channels
- IP video input: 4 ch
- Installation wizard: Yes
- Audio compression: G.711a
- Video compression: H.264/H.265
- Display resolution (analogue): 5MP-lite @ 20fps, 4MP-lite @ 30fps, 1080p/720p/960H @ 30fps
- Display resolution (IP): 4MP/1080p/720p
- Speed per channel (analogue): 5MP-lite @ 15fps. 4MP-lite @
- 18fps, 1080p @ 15fps, 720p @ 25fps
- Speed per channel (IP): 25fps
- Sub-stream: 720×576 @ 10fps
- Event: Motion detection, video loss; beep, email, push notification
- Playback function: Fast forward/backward, slow forward
- Playback: 5MP-lite 90fps (max 6ch), 4MP-lite 126fps (max 7ch), 1080p 120fps (max 8ch), 720p 240fps (max 8ch)
- UI/Monitoring: UI5.0, Internet browser, RxCamView app
- P/W reset: Press 3 seconds
- Factory reset: Press 8 seconds
- BNC: 1-ch (704×576)
- VGA: 1-ch (1080p, 720p, 1024×768)
- HDMI: 1-ch (4K, 2K, 1080p, 720p)
- Ethernet: 1× RJ45 10/100 Base-T
- USB: 1× USB 2.0 (front), 1x USB 3.0 (rear)
- Audio: 8× in, 1× out
- eSATA: 1× (optional, not supported)
- HDD: 1× SATA HDD (up to 6TB)
- RS485: 1×
- Alarm I/O: 8× in, 1× out (optional, not supported by default)
- Input voltage/current: DC 12V 2A
- Operating temperature: 0°C–40°C
- Operating humidity: <90% RH
Design
Performance
Display Output
Connectivity
General
Features:
8-Channel CCTV Recorder
Connect up to 8 coax cameras to the recorder to view and record full quality footage
1080p HD Recording Resolution
The recorder supports Full 1080p HD video to ensure that you capture the most detailed footage
Connect up to 4 IP Cameras
You can also add up to four IP cameras to the recorder via your network (further configuration required)
4-in-1 Compatibility
Supports all major analogue camera video formats including CVBS, TVI, AHD and CVI
Plug-and-Play
Simply hook up the camera to the recorder using the BNC connection
Add up to 6TB of Storage
Supports an HDD up to 6TB in capacity for plenty of recording storage. You can add an optional hard drive from the drop-down menu above
H.265 Compression
This latest encoding technology allows for more video to be stored in less storage space
Online Access
You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet
HDMI Output
View the recorder's output on any monitor with HDMI in up to 4K
Dimensions & Weight:
- Dimension: L22.7 × W30 × H5.3 cm
- Weight: kg
