£2,495.99

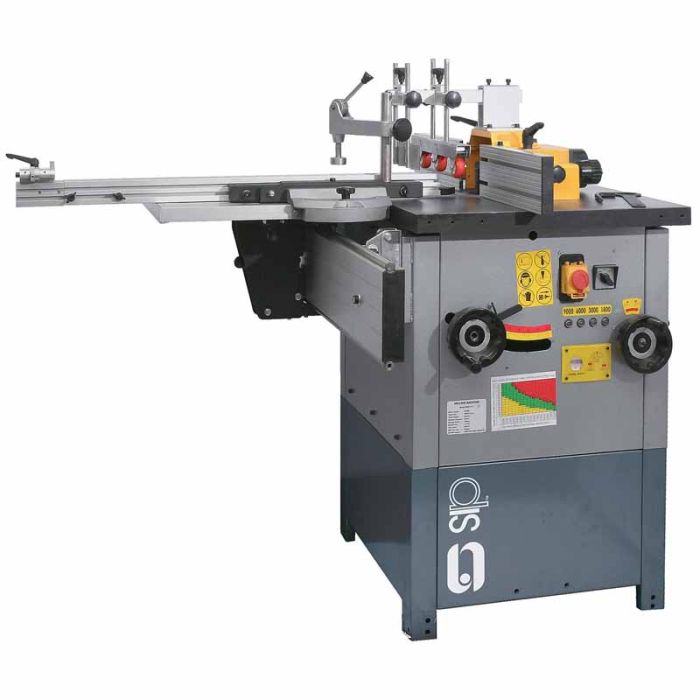

SIP Professional Tilting Spindle Moulder
In Stock Available To Order
Delivery within an estimated 2 - 3 working days
SKU
SIPProfalTiltnSpindleMoul01456
The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.
Designed for home, trade, and professional woodwork applications.
Machine shown with optional SIP Sliding Carriage (01457).
Key Features:
- Versatile -10° to +30° spindle tilting shaft angle
- Comfortable working height with cast iron work table
- 4 powerful working speeds to accommodate all demands
- Low speed for use with supplied sanding bobbin
- Integrated NVR switch for added safety
Delivery Information
Delivery within an estimated 2 - 3 working days
Delivery is FREE to the UK Mainland and Northern Ireland.
Details
The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.
Features:
- Powerful induction motor for heavy-duty performance
- Versatile -10° to +30° spindle tilting shaft angle
- Comfortable 900mm unit height with large 710mm x 640mm work surface designed from high-quality and durable cast iron
- Table is predrilled for power feed unit acceptance
- 4 powerful working speeds to accommodate all demands
- Low speed for use with supplied sanding bobbin
- Integrated NVR switch for added safety
- SIP 2-Year Standard Silver Warranty
Dimensions:
- Net Weight (Kg): 170.00
Technical Data:
- Input Supply: 230v (16A)
- Motor Power: 2.8kW (3.75hp)
- Spindle Speeds: 4 speeds; 1800rpm / 3000rpm / 6000rpm / 9000rpm
- Spindle Diameter: Ø 30mm
- Spindle Travel: 100mm
- Max. Tool Diameter: Ø 200mm
- Table Opening: 200mm
- Table Size: 710mm x 640mm
- Spindle Tilting: -10° - +30°
