£982.79

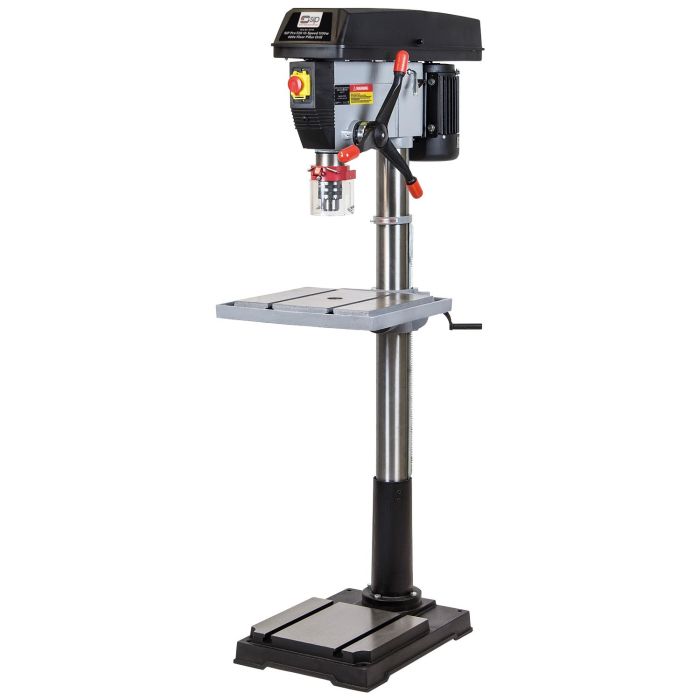

SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill - L57 x W47 x H172 cm
In Stock Available To Order
Delivery within an estimated 2 - 3 working days
SKU
SIP01718
SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill
Delivery Information
Delivery within an estimated 2 - 3 working days
Delivery is FREE to the UK Mainland and Northern Ireland.
Details
The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity.
Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.
Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.
Features:
- SUPPORTS A VARIETY OF DRILLING APPLICATIONS: A large drilling capacity via an MT4 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.
- MULTI-SPEED FUNCTIONALITY: Allows precise control of hole sizes across the drilling spectrum.
- HIGH-POWER BRUSHLESS INDUCTION MOTOR: Delivers powerful performance for consistent high-quality drilling.
- INTUITIVE FEATURES FOR EASE-OF-USE: Adjustable drilling table and 3-lever handle ensures smooth drilling force.
- FITTED WITH DRILLING DEPTH STOP: Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.
- SAFETY INTERLOCK SWITCH: Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.
- SIP 2-YEAR STANDARD SILVER WARRANTY*
Technical Data:
- Input Voltage: 400v 3-PHASE
- Motor Power: 1100w
- No. of Speeds: 12 speeds
- Speed Range: 150rpm - 2500rpm
- Drill Bit Size: 5mm - 20mm
- Max. Drilling Capacity: 32mm
- Spindle Taper: MT4
- Table Size: 420mm x 470mm
- Base Size: 570mm x 425mm
- Column Diameter: Ø 92mm
- Swing: 506mm
- Height: 1720mm
- Spindle Travel: 120mm
- Collar Diameter: Ø 92mm
- Max. Distance: 620mm (chuck to table) / 1095mm (chuck to base)
Dimensions & Weight:
- Dimensions: L57 x W47 x H172 cm
- Weight: 107.4 kg
