SIP 1/4" 4-Way Pressure Switch - L5 x W8 x H12.5 cm
In Stock Available To Order
Delivery within an estimated 2 - 3 working days
SKU
SIP02313

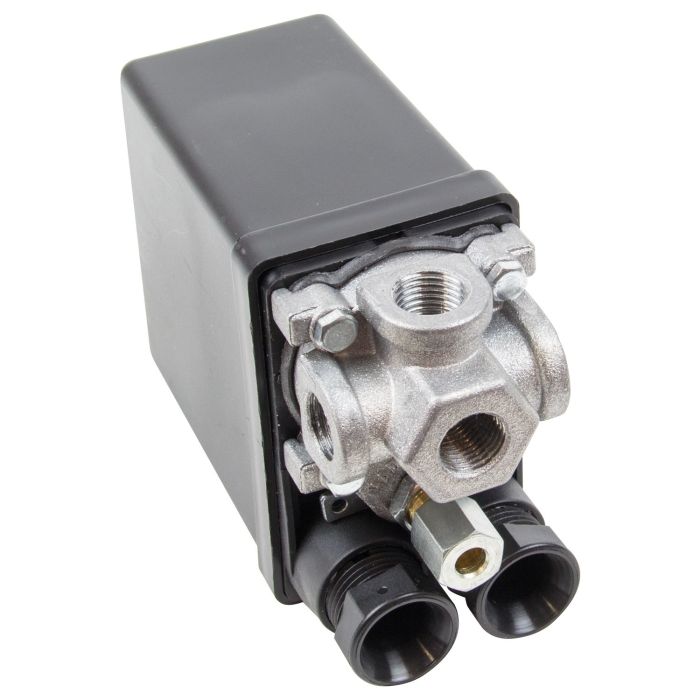

SIP 1/4" 4-Way Pressure Switch
Delivery Information
Delivery within an estimated 2 - 3 working days
Delivery is FREE to the UK Mainland and Northern Ireland.
Details
The SIP 1/4" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.
This easy-to-install switch offers 3x 1/4" BSP ports and adjustable cut-off pressure.
Features:
- 1/4" 4-way pressure switch with 3x 1/4" BSP ports
- Easily adjustable cut-off pressure via built-in switch
- Designed to start and stop electric compressor motors
- Manufactured for long-lasting and reliable use
- Integrated bleed facility with 6mm pipe entry
Technical Data:
- Switch Type: Mignon 4-Way
- Voltage / Current: 230v / 16A
- Overload: N/A
- Inlet Connection Size: 1/4" BSP
- Inlet Connection Type Bottom Entry
- Side Port Size: 3x 1/4" BSP
- Switch Type: Pull
- Phase Type: 1-phase
- No. of Poles: 2 poles
Dimensions & Weight:
- Dimensions: L5 x W8 x H12.5 cm
- Weight: 1 kg
